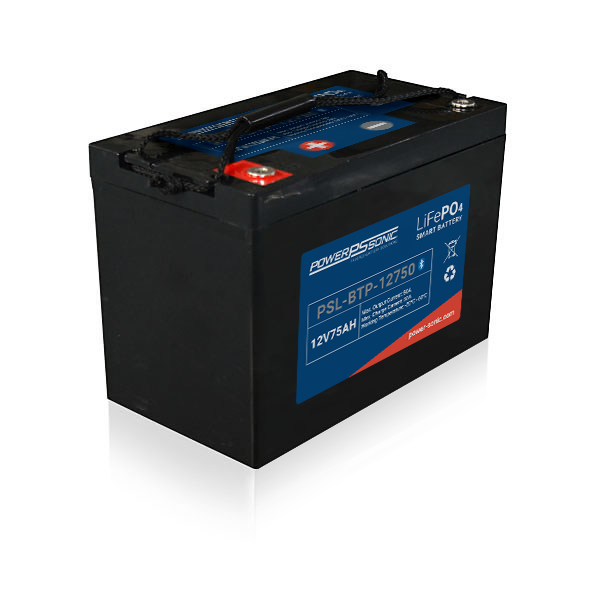

Power Sonic PSL BTP 12750 LiFePO4 Battery

$799.00 $899.00

PLEASE NOTE: THESE BATTERIES CANNOT BE CONNECTED IN SERIES.

The PSL Bluetooth® series is a drop-in replacement for lead acid batteries, bringing with it all the benefits of lithium technology combined with an intelligent battery management system (BMS). It delivers a 70% weight reduction, a superior cycle life and, as it utilizes LiFePO4 technology, a much safer solution than alternative lithium technologies.

Used for: Motorhomes, Boats, Solar, Wind, Medical and other applications that utilize Deep Cycle Type batteries.

Compact and only 40% of the weight of comparable lead acid batteries
Up to 10 times more cycles than lead acid batteries
Faster charging and lower self-discharge
Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity
Super safe chemistry reducing the risk of explosion or combustion due to high impact, over-charging or short circuit situation
Rugged impact resistant ABS case and cover fl ame retardant to UL94:V0

At the heart of every Power Sonic lithium battery is an intelligent BMS that monitors and reacts to multiple voltage, current, and temperature events to maximize performance, battery life and safety. Now with a free Bluetooth® app available you can get instant access to the battery state of charge (SOC), voltage, cycles and a complete log on any potential issues.

Battery Management System (BMS) controls the parameters of the battery to provide optimum safety and performance
BMS enhanced design balances the battery cells and protects against overcharging and discharging
Bluetooth® communication capability for battery status through Power Sonic app

Download Power Sonic PSL BTP 12750 LiFePO4 Battery Datasheet PDF.

Specifications
Warranty

RATED CAPACITY
Nominal Volts	12.8v
Height with Terminal in. (mm)	8.39" (213mm)
Width in. (mm)	6.62" (168mm)
Length in. (mm)	10.24" (260mm)
Weight lbs (kg)	21.6 lbs (9.8 kg)

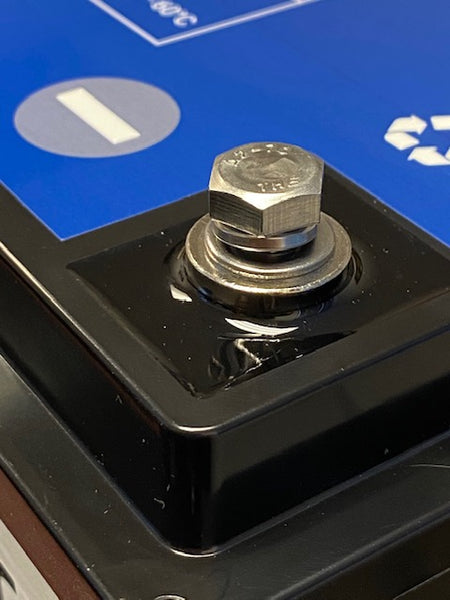

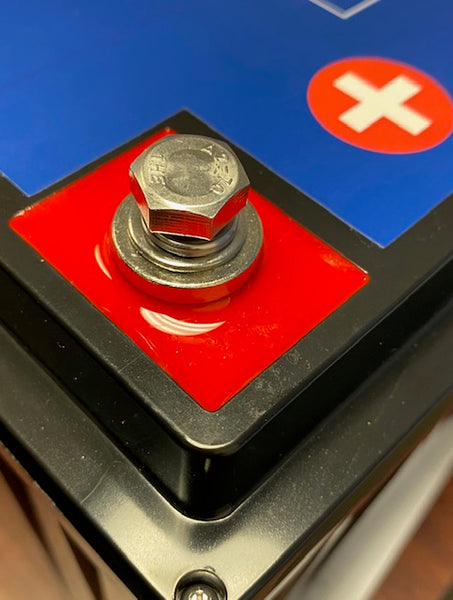

Terminal Configuration	M8
Capacity @ 20 Hr Rate	75 Ah
Cycle Life (@DOD 100%)	<= 2000 cycles
Max Charge Current	50A
Max Discharge Current	50A
Pulse Discharge Current	150A withstand 3s
Discharge Cut-Off Voltage	10.0V
Protection/Communication	BMS and Bluetooth
Connection Options	Up to 4 packs can be connected in parallel. CANNOT be connected in series.
Operating Temperature Range	Charge: 32°F (0°C) to 113°F (45°C) Discharge: -4°F (-20°C) to 140°F (60°C) Recommended: 59°F (15°C) to 95°F (35°C)

General Product Limited Warranty Lithium Based Power-Sonic Batteries

Power-Sonic Corporation (Power-Sonic) warrants its products against defective workmanship and materials for the term defined below by product series and application. The period is defined by the date of manufacture as referenced by the date code on the battery.

Warranty Period

Two Year (24 months) warranty from purchase date.

This warranty shall not apply if buyer fails to notify Power-Sonic of such defects within ten (10) days after discovery, or if battery or charger has been subject to misuse, negligence or accident.

Conditions:

The battery selected by the user must be of the correct size, design, and capacity for the intended application. Failure to do this will invalidate the warranty.
The batteries should be paired with a suitable charger designated for the technology. Incorrect selection of charger and/or failure to follow the correct charging that conforms with Power Sonic’s charging recommendations will void the warranty.
When installing in series or parallel strings user and installer must take precautions to ensure that the series model chosen can operate in this configuration. The user must follow Power Sonic’s recommendations for series and parallel installations, and it is recommended that the user or reseller contact Power-Sonic applications engineering for guidance. The warranty shall be voided if these actions do not take place or if the user does not properly maintain the string as recommended in the installation guides.
The battery should be installed and operated at an average ambient temperature not to exceed 77° Fahrenheit (25° Celsius). The warranty period shall be reduced by 50% for operating temperatures that exceed on average above 95° Fahrenheit (35° Celsius).
Installation of the batteries must be performed by suitably qualified technicians and in accordance with proven acceptable practices or the warranty will be voided.
Dismantling and moving batteries to a different location will void the warranty unless Power-Sonic is contacted and provides written consent of such action.
User agrees to make accessible the batteries under warranty to Power-Sonic or its authorized representative for inspection at reasonable hours and time intervals.
The warranty shall be voided if the battery becomes unserviceable due to fire, freezing, misuse, abuse, neglect, physical damage or any act of nature.
The battery will be determined to be defective if it fails to deliver less than 60% rated capacity when charged and discharged at 0.2°C at temperatures between 20° and 30° C, during the warranty period.
Battery annual maintenance records must be kept manually or electronically including load tests, temperature, Ohmic readings and voltage and made available as part of any warranty claim.
This warranty shall apply only to original purchasers. It is not transferrable.
The replacement battery warranty will be of a length that matches the balance of the original warranty of the failed unit.

Claims:

Contact the original point of purchase for instructions.
Request return authorization. No returns will be credited without an authorization.
In the case of returned products, the batteries must be packed with enough padding and in the appropriate cartons to eliminate the risk of damage in transit.
Power-Sonic has the option to credit or replace products deemed defective and under warranty.
All defective batteries returned to Power-Sonic will become the property of Power-Sonic.

Power-Sonic shall not be liable for indirect, accidental or consequential damages arising out of the sale or relating to the use of this product. The end user assumes all responsibility for any and all personal injury and property damage resulting from the use, maintenance, transportation or installation of the product. The liability to Power-Sonic for any and all claims shall not exceed the purchase price of the battery.

This warranty is in lieu of all other remedies including but not limited to actions for breach of contract or negligence. All other warranties expressed or implied including any warranty of merchantability or fitness for a particular purpose.
