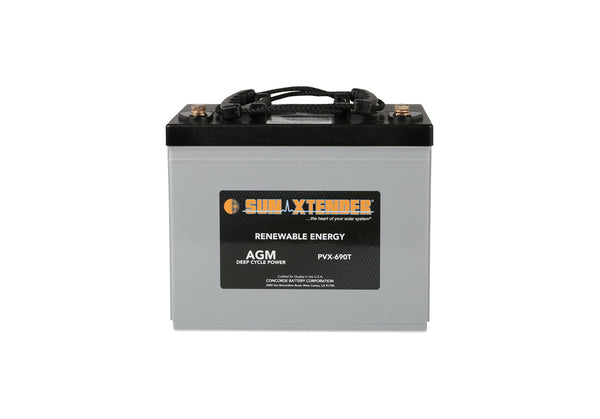

Sun Xtender PVX-690T

FREE SHIPPING (Special order item: call for lead time)

$279.99 $329.99

The SunXtender PVX-690T boasts industry leading life cycles providing safe, reliable and long lasting power.
Recombinant gas SunXtender Deep Cycle AGM Series solar batteries are low resistance, valve regulated lead acid (VRLA) batteries.
Non-Spillable maintenance free construction allows battery to be used upright, on it's end or side.
Features PolyGuard™ Microporous Polyethylene Separators shielding the positive plates against shorting, shock or vibration.
There is no exposed lead on SunXtender batteries and they are 100 percent recyclable making them environmentally friendly.
Designed for photovoltaic applications for superior & reliable solar power.
Low Self Discharge Rate Approximately 1 % per month at 25° C (77° F).
Ships UL approved, HAZMAT Exempt, DOT HMR40 compliant and fully charged ready to install.

Download Sun Xtender PVX-690T Datasheet PDF.

Click here to download Technical Manual PDF.

All SunXtender batteries are proudly made in the USA.

Specifications
Warranty

Nominal Capacity Ampere Hours @ 77°F (25°C) (To 1.75 volts per cell)
Volts	12v
BCI Group Reference	24
Length in. (mm)	10.22" (260mm)
Width in. (mm)	6.6" (168mm)
Height in. (mm)	8.93" (227mm)
Weight lbs (kg)	51 lbs (23.2 kg)
Standard Terminal	M8
1 hr Rate	42 Ah
2 hr Rate	53 Ah
4 hr Rate	55 Ah
8 hr Rate	60 Ah
24 hr Rate	69 Ah

All SunXtender batteries are covered by an 1 Year Free Replacement (no pro-rate)

A battery warranty is for manufacture defects in material and/or workmanship. Warranty does not apply to batteries that are severely discharged, have broken containers, covers, or terminals, have been overcharged or sulphated, or have been neglected or abused or are used in applications for which the battery is not designed.

The warranty covers the defective battery only. BatteryGuys.com is not responsible for any freight charges, installation charges, loss of time, or other consequential damage or cost incurred.

The warranty does not apply to batteries if their proprietary manufacturing code markings and/or serial numbers have been tampered with or removed.

If you feel you have a received a defective battery, please email us at support@batteryguys.com for instructions on how to proceed.
